Hardwired combustive gas detector

Hardwired combustive gas detector
5.0/5 rating (2 votes)

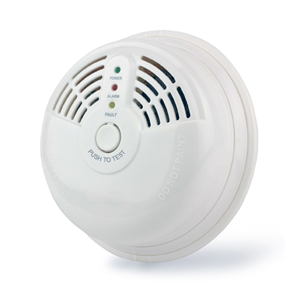

VS-YQ400 is the new design combustive gas detector which is designed for accurate combustive gas detection. The combustive gas detector is equipped with sensitive semi-conductor combustive sensor, and with microprocessor. It's hard-wired sensor can work with fire/burglar alarm panels.

When the density of combustive gas reach the trip point, the detector will be triggered, sensor will make noise warming sound and flash for alarm notification, while instantly sending the signal to alarm panel.

The detectable combustive gas are natural gas and liquefied petroleum gas.

Features and technical

  • Detection of natural gas and petroleum gas
  • Test button design for easy maintenance
  • Alarm reporting: 75dB/M warming sound and RED LED flicking
  • Alarm output: NC relay output (working with fire/burglar alarm panel)
  • Relay Type: 3A 250VAC/30VDC
  • Equipped sensor: Semi-conductor combustive sensor
  • Alarm triggering density: 6% Lower Explosive Limit (± 3%) of Natural Gas
  • Alarm reset: Automatically resetting when the combustive gas density is below the alarm triggering point.
  • Installation method: Ceiling/Wall mounted (depends on types of gas)
  • Working temperature range: -10℃ ~ +55℃
  • Dimension: Ф122×40mm
