Mini NVR 2

IP NVR supports 5MP/3MP/1080P IP cameras
3.6/5 rating (25 votes)

The ideal network video recorder for your home or office IP surveillance system. Working with Onvif compliant IP cameras and RTSP (Real Time Streaming Protocol). This NVR supports different video resolutions including 5MP/3MP/1080P/720P at real time. As the professional network video recorder, it provides you the reliable video recording capability with affordable price.

This high performance 4/8 channel smart NVR is based on a safe & secure Embedded Linux platform. It adopts Hisilicon SoC to provide the H.264 video recording solution. This camera utilizes optimal algorithm to provide you smooth video recording and playback functionality, our innovative "1 - Click Setup" wizard provides users much faster and easier setup than any other NVR on the market.

Full features recorder, supports multi-recording modes, innovative smart search and video playback with 5 different event types to provide you the most efficient video surveillance. Taking the advantages of remote backup, USB backup and up to 4TB internal video storage (support 1 2.5" PC SATA HDD bay), additional e-SATA interface for unlimited external video storage. Dual video output, VGA for traditional LCD display and HDMI for your HDTV.

EN9243 is a 4 channel NVR which is designed for offering digital video streaming recording for 4 channel IP camera system. EN9293 is 9 channel recorder to work with up to 9 IP cameras. EN9263 is 16 channel network video recorder.

Features list

  • NVR for home or small business solution
  • Recording resolution 5MP/3MP/1080P/720P
  • Based on Embedded Linux for high stability and safety
  • Internal 2.5 inch PC SATA HDD bay, up to 4TB
  • eSATA interface for unlimited video storage
  • Dual HDMI and VGA output, max resolution 1920x1080
  • Preview and 15x digital zoom
  • Supports camera multi-streaming
  • Supports RAID 0,1 for data protection
  • Supports motion detection and PTZ function
  • Network supports P2P, RTSP, DDNS, TCP/IP, uPnP, FTP, SMTP
  • Support USB Wi-Fi Dongle and USB 3G dongle wireless connection
  • Remote access via web browser, PC software, Android and iPhone App
  • Industrial Onvif compliant

Max. 5 Megapixel, 2560x1920 Resolution

Based on advanced SoC from Hisilicon, working with 4 channel IP cameras with resolution of 5MP, 3MP, 1080P and 960P or 720P.

Comparison 720P vs 1080P vs 5MP

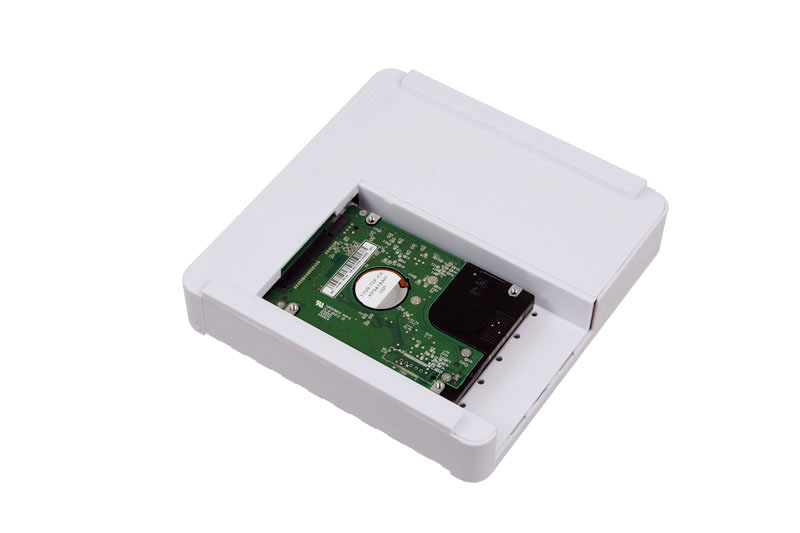

Internal SATA HDD and e-SATA

This NVR has 1 SATA HDD bay for internal video storage with up to 4TB. Equipped with e-SATA for unlimited video storage.

Easy installation with network configuration wizard

User-friendly graphic user interface (GUI) for easy setup or operation. Running the network configuration wizard for plug-and-play setup.

Security NVR GUI

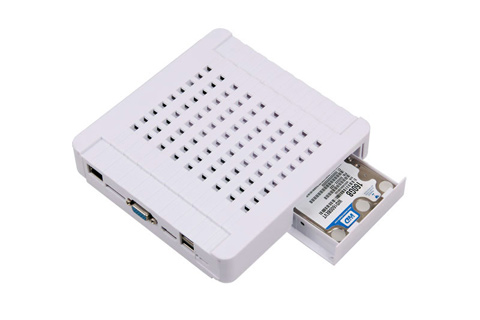

Product photos gallery

Mini NVR 2
Mini NVR 2
Mini NVR 2
Mini NVR 2
Mini NVR 2

Technical parameter

  • Model: EN9243
  • IPC Channel:4 Channel
  • Stream quality: 5MP (2560x1920)/3MP (2048x1536)/1080P(1920×1080)/960P/(1280×960)/720P (1280×720)30fps
  • Video Resolution: 1080P(1920×1080)30fps/960P/(1280×960)/720P (1280×720)30fps
  • Recording Mode: Manual, Full Time, Scheduled, Motion Detection, Alarm Event
  • Playback: 4CH playback in 720/960P/1080P mode
  • Recording storage: One Internal SATA (up to 4TB), One e-SATA port
  • Backup method: USB HDD, e-SATA HDD, U-disc, Network
  • Remotely surveillance: Support LAN management, client management and remote IE visit
  • Dual stream: Individual setting by each channel
  • Mobile Phone Surveillance: Support (iPhone/Android) operation system
  • Wireless: 3G/4G and WIFI dongle
  • Compatibility: Onvif 2.4, compatible third-party IP cameras, VMS.
  • Mouse Zoom: 15x digital zoom, click any area and zoom in or zoom out on the image by mouse
  • Motion Detection: Motion detection area selection, sensitivity 6 grade selection
  • Search: By time (calendar), backup, by event,
  • IP video input: 4 Channel 1080P/960P/720P IP camera inputs
  • Video Output: HDTV HDMI, VGA (minimum requirement 1080P)
  • Video compression: H.264
  • Audio Compression: Standard G.711
  • Audio Output: N/A
  • Audio Talk: Two-way intercom
  • Alarm Input: N/A
  • Alarm Output: N/A
  • Network: RJ45 Ethernet port(10M/100M)
  • RS485: N/A
  • USB: Two USB 2.0 ports
  • E-SATA: One External SATA port
  • SATA HDD Ports: N/A
  • Power Supply: DC5V 2A
  • Consumption: ≤10W(without HDD)
  • Dimensions: 162mm×162mm×35mm
  • Weight: 280g
  • Ingress protection: None/Indoor usage
  • Connectors: RJ-45 10BaseT/100BaseTX, VGA, HDMI, USB
  • Protection Class: Indoor
  • Operating Temperature: -10°C to 55°C
  • Operating Humidity: 20% ~ 80% (non-condensing)

Customer Feedback (12)

  • Giuseppe


    25 January 2015 at 11:40 | #



  • Unifore


    25 January 2015 at 22:27 | #

    Hi there,

    Thanks for your product inquiry.

    Mini NVR2 comes with 4 channel, 9 channel, 16 channel different models.
    Our sales team will contact you for the quotation.


  • Lau


    22 February 2015 at 04:49 | #

    Please quote me for 9 channel model


  • Barclay


    17 April 2015 at 11:42 | #

    Most of this works ok but I cannot get the motion detection working. my cameras support it and the UI seems buggy when in the motion detection options. For instance, when you draw the mask for the motion area it is not saved after clicking save and then navigating away. Nor is the options save for the video mask for a channel. You can enable it hit save then navigate away and come back and it is not enabled. I'm thinking it doesn't support motion detection. Please tell me otherwise, maybe I need new firmware?


  • oscar bustos

    oscar bustos

    28 October 2015 at 07:38 | #

    I need de last firmware for Mini NVR 2 - 16 channel


  • Inforbite


    25 April 2016 at 09:31 | #

    hello I need more information to purchase of your products and send to Portugal
    I am interested in the Mini NVR recorder to 2 cameras for wifi and IP , as is sending to Portugal
    thank you


  • asif


    02 May 2016 at 04:27 | #

    Can u please send me the price list.


  • Michael Atkinson

    Michael Atkinson

    31 May 2016 at 07:46 | #

    i have changed the admin password and have forgotten it
    how do i reset it


  • michael atkinson

    michael atkinson

    31 May 2016 at 07:47 | #

    I’ve lost my admin password how do i reset it please


  • natan


    17 October 2016 at 07:54 | #

    Good day

    My name is Natan - Analist of Importation in Brazil.

    I need your best quotation for the purchase of 70 units of the MINI NVR 2 to 04 channel. need not include freight charges for my agent will contact you if the purchase is realized.


  • fokozuynen


    21 November 2016 at 16:17 | #

    you reset by open the device is a battery on on it remove battery and atach a mouse to it press both buttons on mouse for 20 sec while you contect the power cable after release the buttons put back the battery mission done.


  • Fred


    04 February 2017 at 20:26 | #

    Have 5 different cameras. Escam, Amcrest, Hikvision and Instar. No one works with motion detection!
