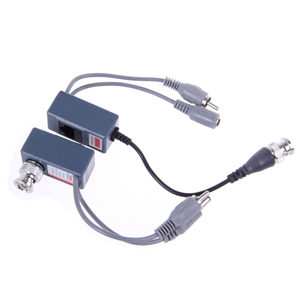

UTP CAT5 1CH Twisted Pair Video Baluns with RJ45

Want to save money on your cctv system projects ? Use the UTP-100 and transmit the video, audio and power over Ethernet cable (CAT5, CAT6), transmission range can reach up to 300ft.
UTP-100 is the traditional 1 channel video balun (UTP balun) for analogue video surveillance system, it's a best choice for long cable runs and saves installation cost, as well as enable your analogue system is easy to shift to IP system in the future. The video baluns can transmit video, audio and power via CAT5 or CAT6 cable, and the wire distance can be run over than coax cable and saves money. UPT-100 comes with RJ45 port. Please note video baluns come with pair, consist of transmitter and receiver.
The key features for UPT-100
- Transmit video, audio and power with CAT5 or CAT6 cable
- Advanced noise reduction, and built-in surge protection
- Long range transmission range up to 300ft
- Point-to-point transmission
- Lowest interference on video transmission
- With RJ45 (Ethernet cable) port, BNC, DC input
- DC loop resistance 52 ohms per 1000 feet
- Saving cost by replacing coax cable (BNC cable)
- Easy plug and play installation with RJ45
- Nice tight fit design for reliable connection
Product's image gallery
The technical information
Model NO. | UTP-100 |
Electrical/ Video | |
Power Source | No |
Wire Type | Unshielded Twisted Pair (24 AWG maximum) |
Wire Category | CAT3, CAT4, CAT5, CAT6 |
Wire Impedance | 100 ohms +/- 10% |
Transmission Distance | 300ft, 1200ft maximum via CAT5, CAT6 |
DC Loop Resistance | 52 ohms per 1000 feet (18 ohms per 100m) |
Video/ Audio Characteristics | |
Video Input/ Output | One BNC (Male) |
Input Impedance | 75 ohms |
Video | |
TV system | NTSC, PAL, SECAM, CCIR |
Frequency Reponse | DC to 6MHz |
OTHER | |
Connector | BNC Input/Output |
RJ45 | UTP Input/Output |
Control | No |
Surge suppression | Yes |
Dimensions | 43*20*21mm |
Net Weight | 0.04Kg |
