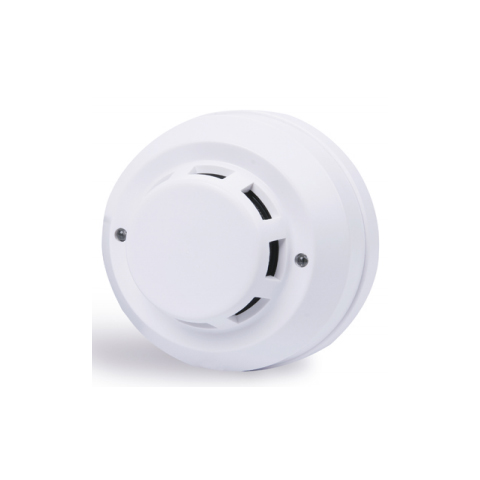

Fire Security Alarm Photoelectric Smoke Detector

Fire Security Alarm Photoelectric Smoke Detector
5.0/5 rating 1 vote

Name: Network Wired Smoke Detector
Model: VS-YY200


The detector adopts the special structure design and ASIC, has the dustproof, mothproof and anti outside light interference feature etc. The detector is suitable for detect the smoke in house, shop, hotel, restaurant, office building, school, bank, library, computer house and storehouse etc.

Download Smoke Detector Flyer in PDF: Click here !


Main Features

ASIC control
Manual test, auto-reset
Infrared photoelectric sensor
Alarm LED indicator
Thin structure design
Strong adaptability to circumstance
SMT adopted
Dustproof, mothproof and anti-white light
Low power indication
Output: NO (normal open)/NC (normal close)

Technical Parameter

Operating voltage: DC9V- 35V
Standby current: less than 55 uA
Alarm current:
35mA @ DC12V
60mA @ DC 24V
Operating temperature: -10 to +50 degrees
Working humidity: less than 95%RH
Alarm Indication: RED LED ON
Alarm mode: NO/NC output / LED indicator
Detecting area: 20 square meter
Sensitivity: class I
Alarm output: sound&flash,NO/NC
Standard: EN54-7/UL268
Dimension: 103mm dia.*53mm deep
