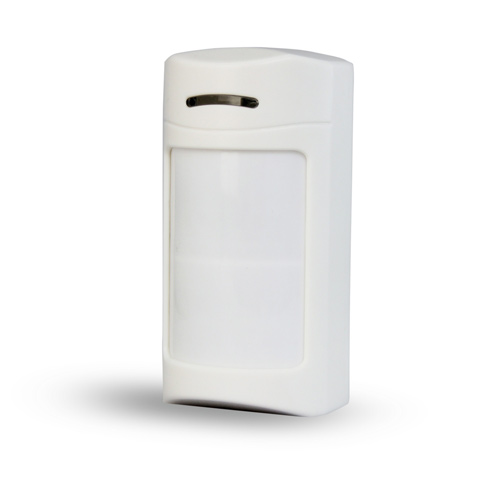

PIR Motion Sensor for IP Camera/NVR

PIR Motion Sensor for IP Camera/NVR
4.0/5 rating (21 votes)

Latest patent design PIR (passive infrared) motion detector, works with security alarm panel and IP cameras, NVR and other security equipment. Providing you integration solution included with intrusion detection. It has NC/NO relay output to work with different equipment.

Different from traditional PIR detector, it utilizes dual PIR motion sensors to provide accurate human movement detection. The detector can provide approximate 110° and up to 12 meters detection range.

This product is a high stability wall-mounted passive infrared detector supports pet-immunity. It uses dual PIR motion sensors and digital signal processing technology to provide ultra-high performance detection and pet-immune feature. Its MCU design can ensure the stability of the product. When the object (>30 kg) enters into detection area, the detector will send signal to alarm panel/access control/IP camera/NVR/NVR. This product is suitable to indoor detection applications for residential, villa, factories, shopping malls, warehouses, offices and other places.

Primary Features

  • Pet-immune to animals below 30kg
  • MCU processing, anti-false alarm efficiently
  • Double temperature compensation
  • Anti white light interference
  • Anti RF interference(20V/m-1GHz)
  • Fresnel lens
  • Wall / corner mounted
  • Alarm output NC / NO optional
  • SMT manufacture technology

Product Gallery

PIR Motion Sensor PIR Motion Sensor PIR Motion Sensor

Technical Information

  • Working Voltage:DC 9-24V
  • Power consumption:≤18mA
  • Detection range:12 meters
  • Detection speed:0.3 m/s~3 m/s
  • Detection angle:110 degree
  • Self-checking (Warm-up):60s
  • Alarm Delay:3 s/30s (seletable)
  • Alarm Indicator:Red LED
  • Sensor type:Dual-element PIR sensor
  • Working temperature:-10℃ ~ +50℃
  • Working humidity:Max. 95%RH (no congelation)
  • Anti-RF:10MHz~1GHz 20V/m
  • Installation:Wall/Ceiling Mounted
  • Installation height:2 meters (height)
  • Alarm Output:NO/NC,DC28V 100mA
  • Tamper Output:NC,DC28V 100mA
