Wired Dual-Tech outdoor motion sensor

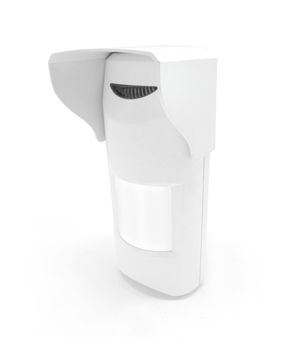

Hardwired Dual-tech PIR Motion Detector
3.3/5 rating (38 votes)

New Wired Outdoor Motion Sensor
Model:VS-YH800

VS-YH800 Introduction

VS-YH800 is professional triple technology (Tri-Tech) motion detector which is combined microwave and passive infrared, as welll as artificial intelligence (DSP) technology. The new outdoor motion sensor adopts advanced signal analysis technology, can avoide false alarm casued by various environment factors. The new motion detector can be used in residential, warehouse, banks...etc commercial business.
With typical Normal Open and Normal Close output, it can work with all other alarm systems.

Download the product's user manual:User Manual

Main Features

  • Infrared +Microwave technology(10.525 GHz)
  • Microcontroller signal processing
  • Microwave detection based on Doppler concept
  • Pet Immunity up to 80lb (36kg)
  • Unique waterproof and seal plastic design, rain and dust proof IP65
  • White light immunity>10000Lux
  • PIR sensitivity selection
  • MW intensity adjustment
  • N.O. & N.C. relays switched optionally
  • Front and back tamper protection
  • Temperature compensation
  • High RFI/EMI immunity
  • Connector is outside of housing, convenient wiring
  • Stainless steel bracket

Outdoor motion sensor internal design



Application

Motion sensor applications

Connection outdoor motion sensor example

Wiring Outdoor Motion Sensor

Product's image gallery

Dual-Tech Motion Sensor Internal ViewIR security camera side view Dual Tech Motion Sensor front view Tech Motion Sensor Side View Dual-Tech Motion Sensor Back View Dual-Tech Motion Sensor Back View Dual-Tech Motion Sensor Connector

Technical Parameter:

Power supply DC12V
Working current 30mA
Alarm Output NC / NO optional
Installation method Wall mounted
Sensor Duel-core PIR sensors
Pulse count 1-2 Level Adjustable
Detecting Range 90 degree, 12m (typical)
Temperature Compensation Auto compensation
Microwave Frequency 10.252GHZ
White light protection >1,000,000Lux
Working temperature -30C~ 60C
Waterproof Ingress Protection level: IP66
Dimension 184*84.5*80.63mm
